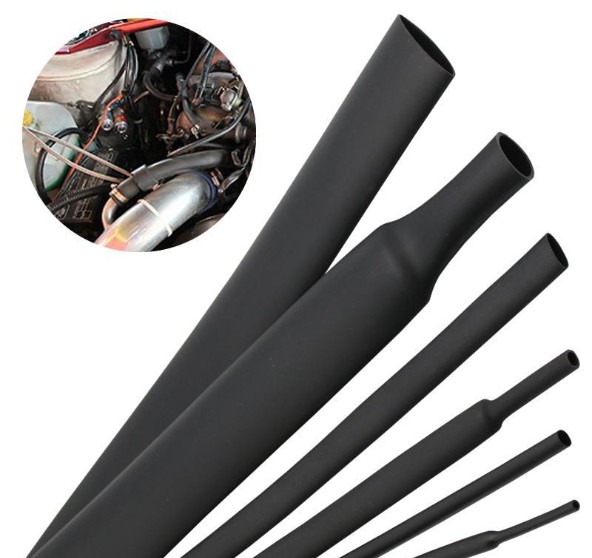

TRS-DR150 Diesel Resistant Modified Elastomeric Heat Shrink Tubing
TRS-DR150 is a kind of heat shrink tubing made of flexible elastomeric polyester which is designed for harsh operating conditions. It is resistant to a wide range of solvents and chemicals including aviation fuel, diesel fuel, lubricating oils, and hydraulic fluid.
Structure
Technical Performance
Properties | Typical Data | Test Methods |
Tensile Strength | ≥12MPa | ASTM D 2671 |
Elongation | ≥400% | ASTM D 2671 |
Tensile Strength After Heat Aging | ≥8MPa | 160°C×168h |
Elongation After Heat Aging | ≥220% | 160°C×168h |
Longitudinal Change | -8%~+8% | ASTM D 2671 |
Dielectric Strength | ≥15kV/mm | IEC 60243 |
Fluid Resistance Tensile Strength | ≥10MPa | ISO 37 24hrs.(diesel 70°C,hydraulic 70°C, lubricant 100°C) |
Fluid Resistance Elongation | ≥300% |
Flammability | VW-1 | UL 224 |
Heat Shock | No crack,no dripping | 215°C×4h |
Dimension
Sizes | I.D. As Supplied D(mm) | Sizes After Full Recovery(mm) | Standard Package (M/Roll) |
I.D. d | Wall Thickness w |
Φ3.2 | ≥3.2 | ≤1.6 | 0.76±0.15 | 200 |
Φ4.8 | ≥4.8 | ≤2.4 | 0.84±0.15 | 100 |
Φ6.4 | ≥6.4 | ≤3.2 | 0.89±0.15 | 100 |
Φ9.5 | ≥9.5 | ≤4.8 | 1.02±0.20 | 50 |
Φ12.7 | ≥12.7 | ≤6.4 | 1.22±0.20 | 30 |
Φ19.0 | ≥19.0 | ≤9.5 | 1.45±0.28 | 30 |
Φ25.4 | ≥25.4 | ≤12.7 | 1.78±0.28 | 30 |
Φ38.1 | ≥38.1 | ≤19.0 | 2.41±0.41 | 15 |
Φ50.8 | ≥50.8 | ≤25.4 | 2.79±0.41 | 15 |
Φ76.0 | ≥50.8 | ≤38.0 | 3.18±0.50 | 15 |
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
