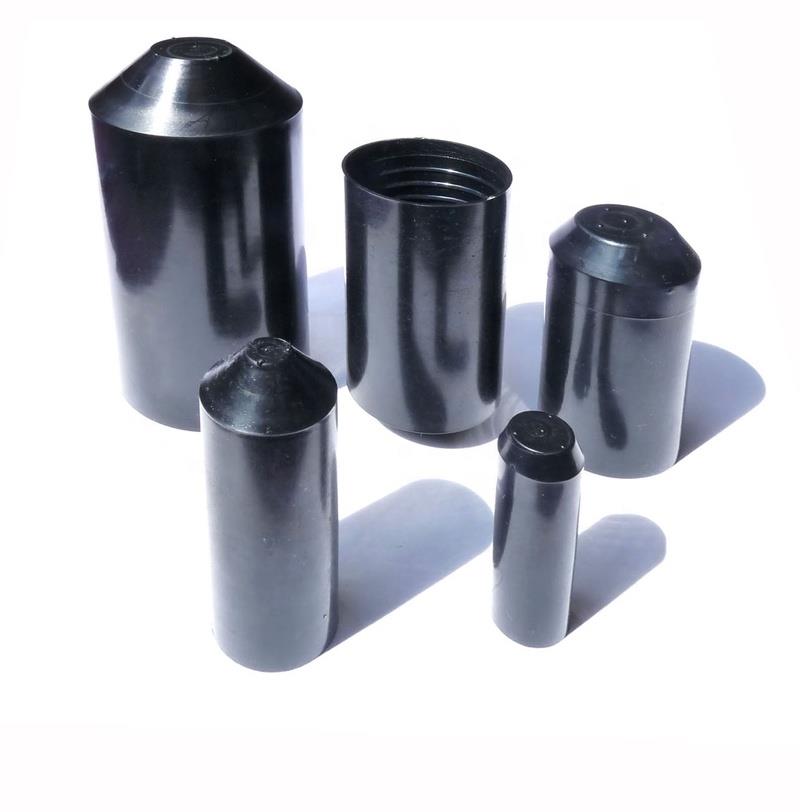

MSPT-CAP Polyethylene Adhesive Lined Heat Shrink Cable End Cap
Applications
Recommended for use both in open air and on underground power distribution cables with PVC, lead or XLPE sheets. Definitive recovery with the layer of spiral coated hot melt adhesive.
Resistant to oxidation, ozone, UV radiation. Protects power
cables up to 1000 V and telecommunication cables. Very easy to fit over cable end. Environment definitive watertight seal. Material: thermally stabilized cross linked polyolefin, coated with specially hot melt adhesive.
Features
Operating temperature: -55°C to +110°C
Minimum full recovery: 120 °C
Effectively offering protection against oxidation, ozone,
UV-radiation.
Coated with hot melt adhesive to ensure environment seal.
Standard color: Black.
Structure
Dimensions
Size(mm) | As Supplied ID(mm) | Length (±10%) | Length of Adhesive (±10%) | Size after shrink (±10%) |
ID(mm) | Wall thickness W (±10%) |
Standard Type |
Φ12/4 | ≥12.0 | 40 | 15 | ≤4.0 | 2.6 |
Φ14/5 | ≥14.0 | 45 | 18 | ≤5.0 | 2.2 |
Φ20/6 | ≥20.0 | 55 | 25 | ≤6.0 | 2.8 |
Φ25/8.5 | ≥25.0 | 68 | 30 | ≤8.5 | 2.8 |
Φ35/16 | ≥35.0 | 83 | 35 | ≤16.0 | 3.3 |
Φ40/15 | ≥40.0 | 90 | 40 | ≤16.0 | 3.3 |
Φ55/26 | ≥55.0 | 103 | 50 | ≤26.0 | 3.5 |
Φ75/36 | ≥75.0 | 120 | 55 | ≤36.0 | 4.0 |
Φ100/52 | ≥100 | 140 | 70 | ≤52.0 | 4.0 |
Φ120/60 | ≥120 | 150 | 70 | ≤60.0 | 4.0 |
Φ145/60 | ≥145 | 150 | 70 | ≤60.0 | 4.0 |
Φ160/82 | ≥160 | 150 | 70 | ≤82.0 | 4.2 |
Φ200/90 | ≥200 | 160 | 70 | ≤90.0 | 4.2 |
Standard Long Type |
Φ14/5 | ≥14.0 | 55 | 30 | ≤5.0 | 2.2 |
Φ42/15 | ≥42.0 | 110 | 40 | ≤15.0 | 3.3 |
Φ55/23 | ≥55.0 | 140 | 70 | ≤23.0 | 3.8 |
Φ62/23 | ≥62.0 | 140 | 70 | ≤23.0 | 3.8 |
Φ75/32 | ≥75.0 | 150 | 70 | ≤32.0 | 4.0 |
Φ75/36 | ≥75.0 | 170 | 70 | ≤36.0 | 4.2 |
Φ105/45 | ≥105 | 150 | 65 | ≤45.0 | 4.0 |
