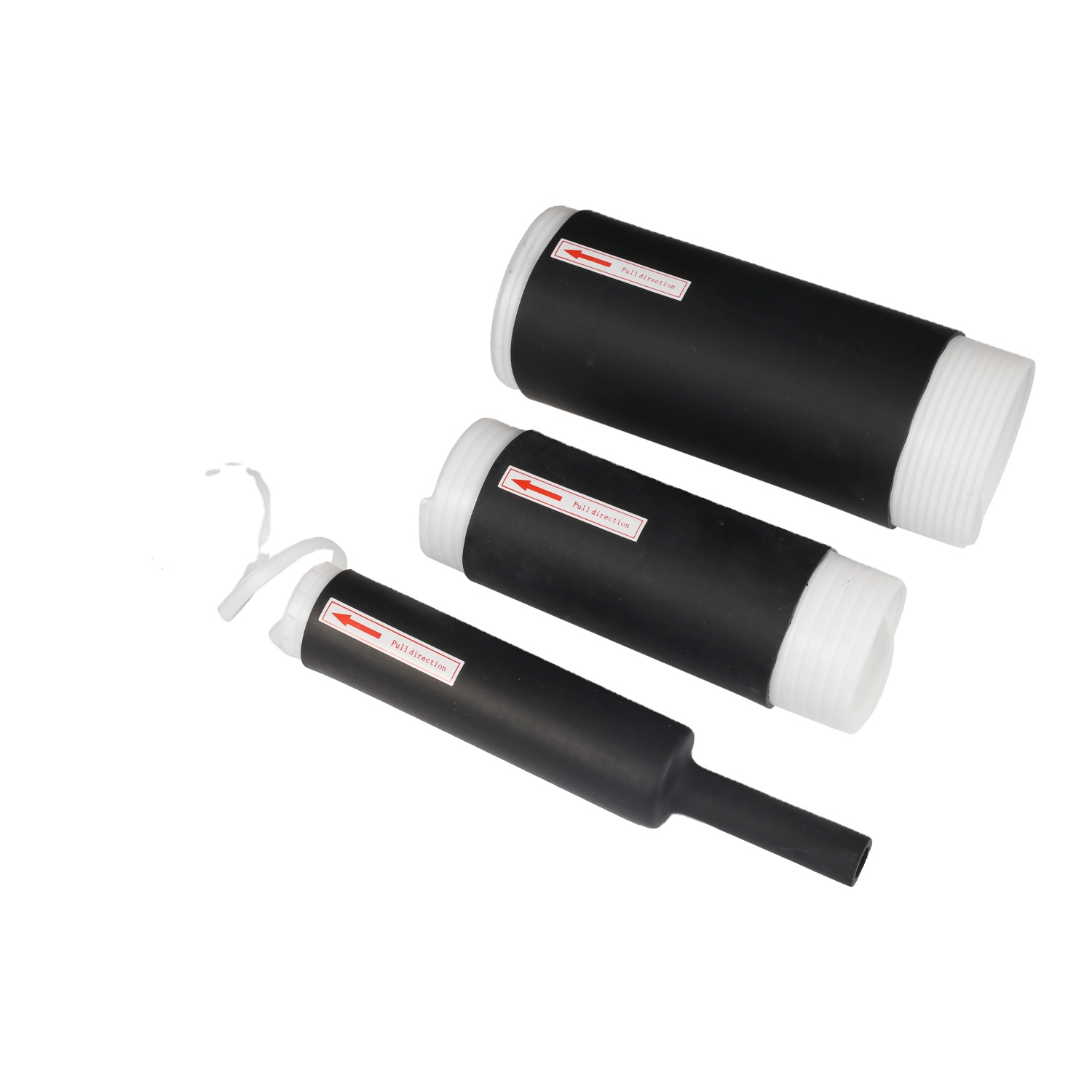

JES-EPDM Cable Joint Kits EPDM Rubber Cold Shrink Tubing

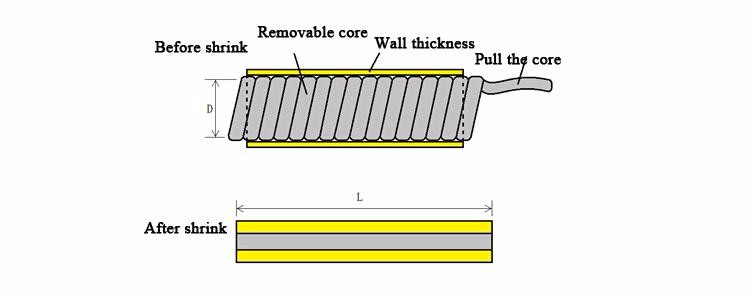

Cold shrink tubing is a reliable and fast solution to protect a connection. Simply position the pre-expanded tubing over the connection and pull out the rip cord. The tubing shrinks immediately without heat and seals the connection firmly.
Product Name | Cold Shrink Tubing |
Material | epdm rubber |
Aplications | Offering good mechanical, insulation and sealing protection
Accommodating a wide range of cable sizes
For indoor or outdoor applications |
Delivery time | Depends on the size and structure.
Normally: 7-45days basing on the different parts design. |
R&D | 1. Drawing design and making for products and mold; 2. Mold drawing revising;
3. Production time and quality control in each machining process. |
Dimensions:
Spec. | Inner Diameter (mm) | Min Cable Outer Diameter (mm) | Max Cable Outer Diameter (mm) | Recovered Length L(mm) |
JE18-3 | Ф18 | 7.8 | 14.3 | 80 |
JE18-6 | Ф18 | 7.8 | 14.3 | 152 |
JE18-7 | Ф18 | 7.8 | 14.3 | 178 |
JE25-7 | Ф25 | 10.1 | 20.9 | 178 |
JE25-8 | Ф25 | 10.1 | 20.9 | 203 |
JE25-11 | Ф25 | 10.1 | 20.9 | 279 |
JE25-12 | Ф25 | 10.1 | 20.9 | 305 |
JE28-5 | Ф28 | 8.0 | 22.5 | 125 |
JE35-6 | Ф35 | 13.9 | 30.1 | 152 |
JE35-8 | Ф35 | 13.9 | 30.1 | 203 |
JE35-9 | Ф35 | 13.9 | 30.1 | 229 |
JE35-11 | Ф35 | 13.9 | 30.1 | 279 |
JE42-6 | Ф42 | 16.8 | 35.1 | 152 |
JE42-8 | Ф42 | 16.8 | 35.1 | 203 |
JE42-10 | Ф42 | 16.8 | 35.1 | 254 |
JE42-12 | Ф42 | 16.8 | 35.1 | 305 |
JE42-16 | Ф42 | 16.8 | 35.1 | 406 |
JE42-18 | Ф42 | 16.8 | 35.1 | 457 |
JE50-8 | Ф50 | 13.5 | 43.7 | 203 |
JE58-6 | Ф58 | 24.0 | 49.3 | 152 |
JE58-7 | Ф58 | 24.0 | 49.3 | 178 |
JE58-8 | Ф58 | 24.0 | 49.3 | 203 |
JE58-10 | Ф58 | 24.0 | 49.3 | 254 |
JE58-12 | Ф58 | 24.0 | 49.3 | 305 |
JE58-18 | Ф58 | 24.0 | 49.3 | 457 |
JE58-24 | Ф58 | 24.0 | 49.3 | 610 |
JE58HP-10 | Ф58 | 20.5 | 51.0 | 254 |
JE65-10 | Ф65 | 23.7 | 57.5 | 254 |
JE77-6 | Ф77 | 32.2 | 67.8 | 152 |
JE77-7 | Ф77 | 32.2 | 67.8 | 178 |
JE77-9 | Ф77 | 32.2 | 67.8 | 229 |
JE77-12 | Ф77 | 32.2 | 67.8 | 305 |
JE77-13 | Ф77 | 32.2 | 67.8 | 330 |
JE77-14 | Ф77 | 32.2 | 67.8 | 355 |
JE77-18 | Ф77 | 32.2 | 67.8 | 457 |
JE77-22 | Ф77 | 32.2 | 67.8 | 550 |
JE77HP-13 | Ф77 | 27.4 | 70.0 | 330 |
JE105-8 | Ф105 | 42.6 | 93.7 | 203 |
JE105-9 | Ф105 | 42.6 | 93.7 | 229 |
JE105-18 | Ф105 | 42.6 | 93.7 | 457 |
JE105-20 | Ф105 | 42.6 | 93.7 | 508 |
JE120-24 | Ф120 | 33.0 | 114.3 | 610 |
JE160-24 | Ф160 | 60.0 | 154.0 | 620 |
