High Voltage Silicone Rubber Fiberglass Braided Tubing

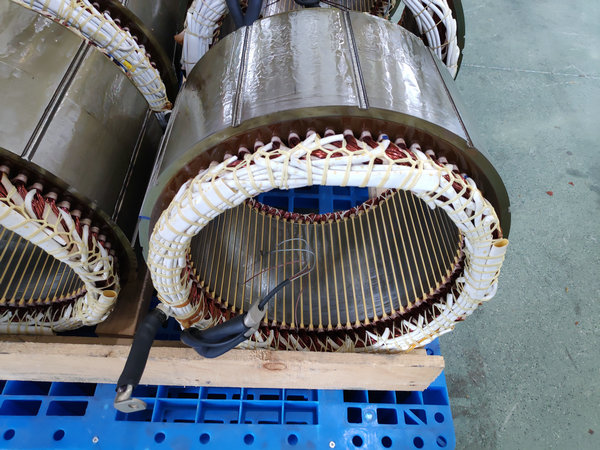

Made of alkali-free glass fiber woven into a tube, coated with silicone rubber on the outer layer of the tube, and then cured. It has high dielectric strength, good flexibility, heat aging resistance,oil resistance, flame retardancy, and temperature resistance up to 200 degree. Widely used in circuit insulation protection for new energy vehicles, special vehicles, rail transit, military aerospace, etc.
Features:
1.Operating temperature:-40°C~200°C
2.Environmental standard: RoHS,REACH
3.Color :Nature, White, Black, Red, Yellow, Blue, Green, Orange, other colors are available
4. Flame retardant rating: HB
5.Rated voltage: 1.5KV,2.5KV,4.0KV,7.0KV
PRODUCT SPECIFICATIONS
Items | Technical Parameters | Reference Standard |
Appearance | No glue leakage, cracking, etc. | GB/T 7113.1-2014 |
Coating hydrolysis | No coating displacement, adhesion, etc. | GB/T 7113.2 |
Cold bending test
| -40℃，4h，No cracks, coating peeling and delamination | IEC60684 |
Temperature | -40℃～200℃ | UL1441 |
Flame retardant rating | HB | UL94 |
Breakdown voltage | Reference standard | GB/T 1408-2016 |
Heat Resistance | 250℃±5, 24h, No droplets, no flow marks, no cracking | JB/T 7093 2015 |
Dimensions
I.D.(mm) | Wall thickness(mm) | Package |
Size | Tolerance | 1500V | 2500V | 4000V | 7000V | M/Roll |
Φ2.0 | -0.10～0.25 | 0.35±0.1 | 0.40±0.1 | 0.45±0.1 | 0.5±0.1 | 100 |
Φ2.5 | -0.10～0.25 | 0.35±0.1 | 0.40±0.1 | 0.45±0.1 | 0.5±0.1 | 100 |
Φ3.0 | -0.10～0.25 | 0.35±0.1 | 0.40±0.1 | 0.45±0.1 | 0.5±0.1 | 100 |
Φ3.5 | -0.10～0.35 | 0.4±0.1 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 100 |
Φ4.0 | -0.10～0.35 | 0.4±0.1 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 100 |
Φ4.5 | -0.10～0.35 | 0.4±0.1 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 100 |
Φ5.0 | -0.10～0.35 | 0.4±0.1 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 100 |
Φ5.5 | -0.10～0.40 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 0.60±0.1 | 100 |
Φ6.0 | -0.10～0.40 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 0.60±0.1 | 100 |
Φ7.0 | -0.10～0.50 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 0.60±0.1 | 100 |
Φ8.0 | -0.10～0.50 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 0.65±0.1 | 50 |
Φ9.0 | -0.10～0.50 | 0.45±0.1 | 0.50±0.1 | 0.55±0.1 | 0.65±0.1 | 50 |
Φ10.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.7±0.15 | 50 |
Φ11.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.7±0.15 | 50 |
Φ12.0 | -0.20～0.70 | 0.50±0.15 | 0.55±0.15 | 0.65±0.15 | 0.7±0.15 | 50 |
Φ13.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ14.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
Φ15.0 | -0.30～0.80 | 0.55±0.15 | 0.60±0.15 | 0.70±0.15 | 0.75±0.15 | 50 |
We don't list all sizes here.Diameter 16mm-25mm can also produce
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
