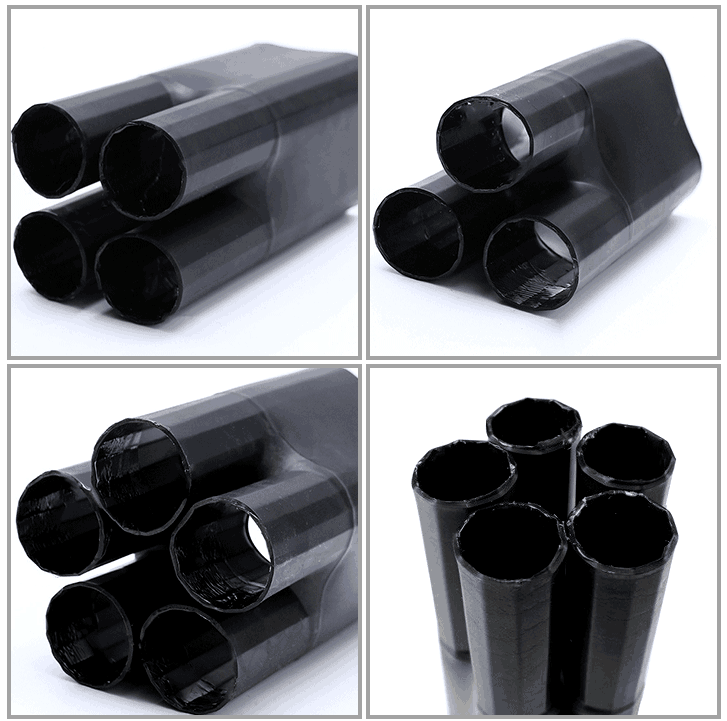

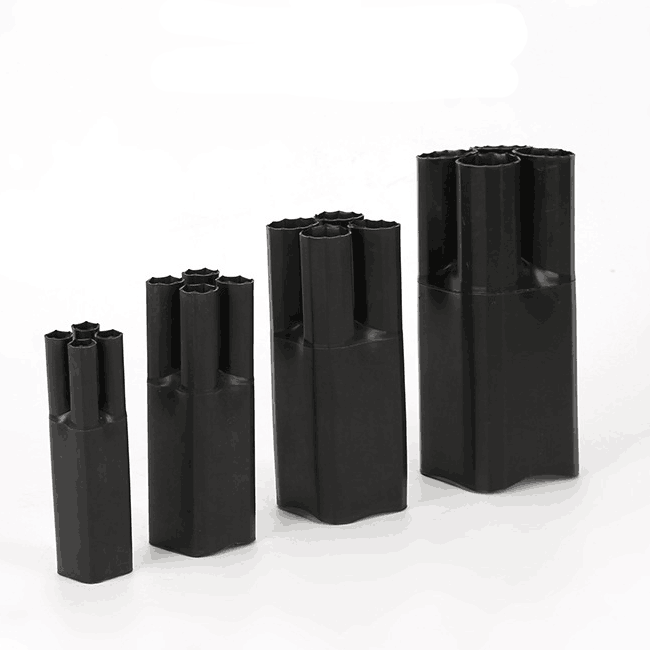

MSPT-BKT Low Voltage Heat Shrink Cable Breakout
Product Name | Heat Shrink Cable Break Out Boots |
Material | 1.PE, EVA; 2.hot-maelt adhesive |
Color | Black |
Size | Two-cores, Three-cores, Four-cores, Five-cores |
Operating temperature | -55℃~110℃ |
Shrinking temperature | 110℃~130℃ |
Application range | It is suitable for sealing and insulation protection at the branch of multi-core cable core, easy to operate, reliable performance and long service life. Generally used with 1kv, 10kv, 30kv heat shrink cable terminals. |
DImensions:
Size (mm) | Big end ID(mm) | Finger ID(mm) | Length (±10%) | Thickness after shrink (±20%) |
Before shrink | After shrink | Before shrink | After shrink | Total Length | Finger Length | Big end Thickness | Finger Thickness |
Two cores cable breakout |
Φ22/8 | 22 | 8 | 9 | 3.5 | 55 | 18 | 2.2 | 1.8 |
Φ30/12 | 30 | 12 | 14 | 4.5 | 93 | 23 | 2.6 | 2.2 |
Φ40/16 | 40 | 16 | 15 | 5 | 125 | 35 | 2.1 | 2.1 |
Φ60/23 | 60 | 23 | 25 | 7.5 | 118 | 29 | 2.6 | 2.6 |
Φ60/23 | 60 | 23 | 25 | 7.5 | 155 | 45 | 2.6 | 2.6 |
Φ100/42 | 100 | 42 | 30 | 9 | 155 | 55 | 3.1 | 3.1 |
Φ150/75 | 150 | 75 | 20 | 6 | 170 | 64 | 3.8 | 3.8 |
Three cores cable breakout |
Φ38/16 | 38 | 17 | 14 | 4..5 | 98 | 23 | 2.7 | 2.7 |
Φ40/16 | 40 | 16 | 15 | 4.5 | 125 | 35 | 2.1 | 2.1 |
Φ60/24 | 60 | 25 | 25 | 8 | 165 | 50 | 3.0 | 2.5 |
Φ60/24 | 60 | 24 | 25 | 8 | 180 | 45 | 3.2 | 2.8 |
Φ80/36 | 80 | 38 | 35 | 11 | 185 | 55 | 3.5 | 3.5 |
Φ80/36 | 80 | 38 | 35 | 11 | 215 | 57 | 4.0 | 4.0 |
Φ110/48 | 110 | 50 | 46 | 17.5 | 250 | 65 | 4.0 | 4.0 |
Φ125/57 | 125 | 57 | 55 | 20 | 260 | 57 | 4.0 | 4.0 |
Φ140/70 | 140 | 70 | 62 | 26 | 280 | 70 | 4.0 | 4.0 |
Φ170/75 | 170 | 77 | 75 | 28 | 280 | 80 | 4.0 | 4.0 |
Four cores cable breakout |
Φ40/15 | 42 | 15 | 14 | 3.5 | 105 | 26 | 2.2 | 2.0 |
Φ55/21 | 55 | 21 | 20 | 5 | 150 | 40 | 3.1 | 2.6 |
Φ65/26 | 65 | 26 | 26 | 7 | 175 | 45 | 3.3 | 2.9 |
Φ75/26 | 75 | 26 | 28 | 7 | 175 | 45 | 3.3 | 2.9 |
Φ82/37 | 82 | 37 | 30 | 9 | 190 | 60 | 4.0 | 3.0 |
Φ90/37 | 90 | 37 | 32 | 9 | 190 | 60 | 4.0 | 3.0 |
Φ100/47 | 102 | 47 | 38 | 12 | 198 | 58 | 4.0 | 3.0 |
Φ125/52 | 130 | 52 | 52 | 15 | 240 | 75 | 4.0 | 4.0 |
Φ160/70 | 160 | 70 | 64 | 19 | 260 | 75 | 4.0 | 4.0 |
Five cores cable breakout |
Φ40/19 | 40 | 19 | 13 | 4 | 98 | 25 | 2.5 | 2.0 |
Φ55/24 | 55 | 24 | 18 | 5 | 155 | 40 | 3.2 | 2.6 |
Φ80/33 | 80 | 33 | 26 | 8 | 175 | 53 | 3.0 | 2.8 |
Φ100/42 | 100 | 42 | 34 | 10 | 190 | 60 | 3.0 | 3.0 |
