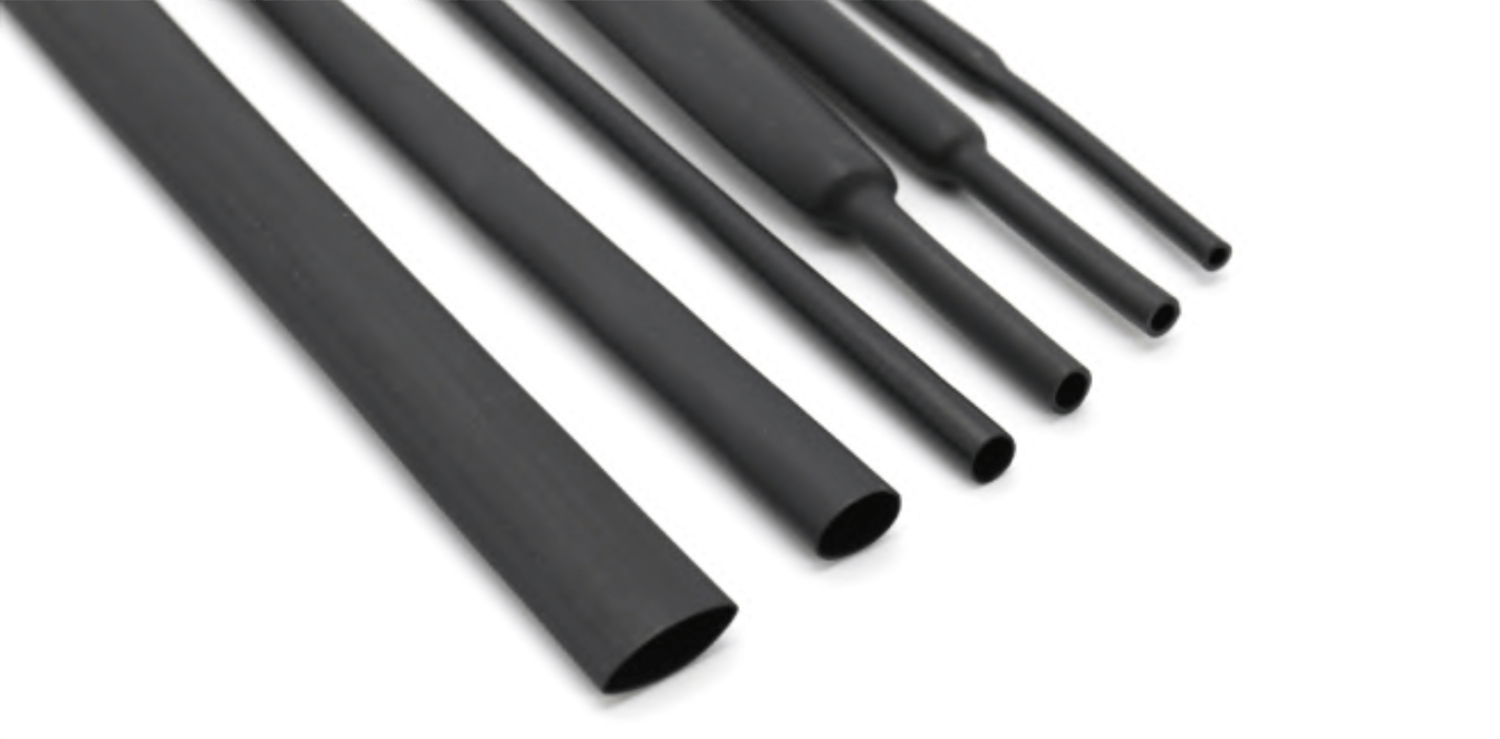

TRS-VT200 High Temperature Resistant Viton Modified Fluoroelastomer Heat Shrink Tubing
TRS-VT200 Viton fluoroelastomer heat shrink tubing is made of special designed fluoro rubber which was cross-linked by radiation with scientific formula. It is highly abrasion and cut-through resistant and can withstand a wide variety of fuels, lubricants, acids, and highly corrosive fluids at temperatures up to 200°C.
Structure
Technical Performance
Property | Test Method | Test Method |
Tensile strength | ≥12MPa | ASTM D 638 |
Ultimate elongation | ≥400% | ASTM D 638 |
Tensile strength Ultimate elongation | ≥300% | 250℃×168h |
Flammability | Self-quenching In 15 seconds | ASTM D 2671 |
Longitudinal expansion rate | -5%～+5% | ASTM D 2671 |
Heat shock | No cracking | 300℃×4h |
Breakdown strength | ≥12kV/mm | ASTM D 2671 |
volume resistivity | ≥109Ω.cm | ASTM D 876 |
Dimension
Size(mm) | As Supplied (mm) D | After Recovery (mm) | Standard Length |
Inner diameter d | Wall thickness w | (m/spool) |
Φ2.4 | ≥2.4 | ≤1.2 | 0.51±0.08 | 200 |
Φ3.2 | ≥3.2 | ≤1.6 | 0.76±0.13 | 100 |
Φ4.8 | ≥4.8 | ≤2.4 | 0.89±0.18 | 50 |
Φ6.4 | ≥6.4 | ≤3.2 | 0.89±0.18 | 50 |
Φ9.5 | ≥9.5 | ≤4.8 | 0.89±0.18 | 50 |
Φ12.7 | ≥12.7 | ≤6.4 | 0.89±0.18 | 50 |
Φ19.1 | ≥19.1 | ≤9.5 | 1.07±0.21 | 30 |
Φ25.4 | ≥25.4 | ≤12.7 | 1.25±0.30 | 30 |
Φ38.1 | ≥38.1 | ≤19.1 | 1.40±0.38 | 30 |
Φ50.8 | ≥50.8 | ≤25.4 | 1.65±0.43 | 30 |
