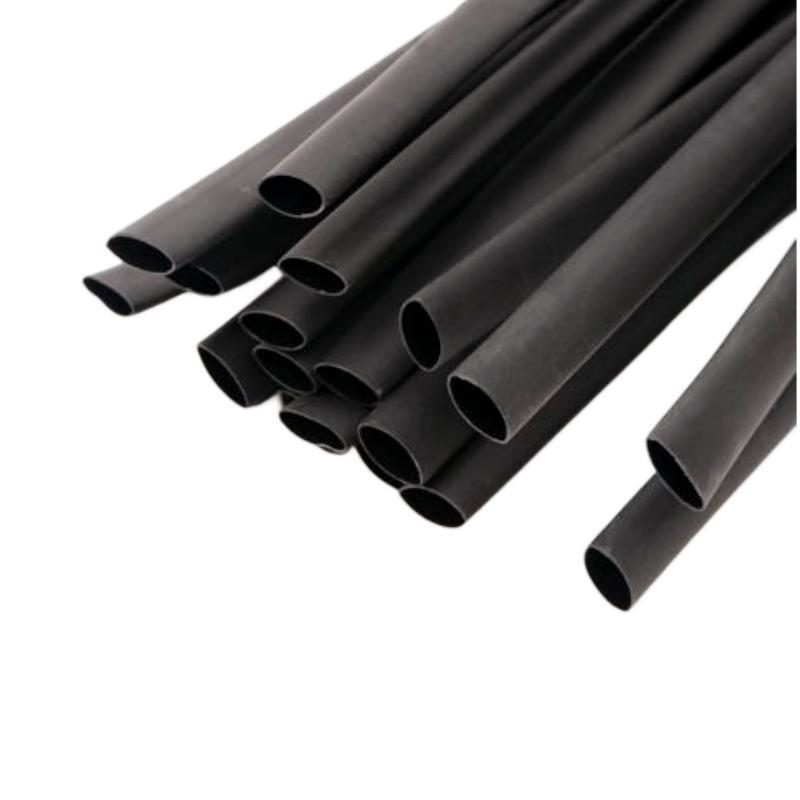

TRS-EPDM150 High Temperature Resistant EPDM Rubber Heat Shrink Tubing
TRS-EPDM150(2X) is a kind of heat shrink tubing made through a complicated formulation of EPDM rubber and special resins. It has much better physical and mechanical performance and higher dielectric strength, abrasion, and wear resistance properties than normal EPDM tubing. suitable for jacketing and protection of cables, pipes, and connectors. Mainly used for protecting solder joints, wires, cable.
Structure
Technical Performance
Properties | Typical Data | Test Method |
Tensile Strength | ≥14 Mpa | GB/T 528 |
Ultimate Elongation | ≥400% | GB/T 528 |
Tear Strength | ≥ 60Kn/M | ASTM D 624 |
Dielectric Strength | ≥12kV/mm | ASTM D149 |
Density | 1.1±0.05 g/cm3 | ASTM D 792 |
Volume Resistivity | ≥2×1013 | ASTM D 257 |
Dimension
Size
(mm) | As Supplied(mm) D | After Full Recovery(mm) | Scope of Application (mm) | Standard Package (M/Roll) |
I.D.(Max.)d | Wall Thickness w |
φ6.0 | ≥6.0 | ≤3.0 | 0.8±0.10 | 3.5-6 | 50 |
φ8.0 | ≥8.0 | ≤4.0 | 0.9±0.10 | 4.5-8 | 50 |
φ10.0 | ≥10.0 | ≤5.0 | 1.2±0.10 | 5.5-9.5 | 50 |
φ12.0 | ≥12.0 | ≤6.0 | 1.2±0.10 | 6.5-11.5 | 20 |
φ16.0 | ≥16.0 | ≤8.0 | 1.5±0.15 | 8-15 | 20 |
φ20.0 | ≥20.0 | ≤10.0 | 1.5±0.15 | 11-19 | 20 |
φ30.0 | ≥30.0 | ≤15.0 | 1.8±0.15 | 17-29 | 20 |
φ40.0 | ≥40.0 | ≤20.0 | 2.0±0.15 | 22-38 | 20 |
φ50.0 | ≥50.0 | ≤25.0 | 2.0±0.20 | 27-48 | 10 |
φ60.0 | ≥60.0 | ≤30.0 | 2.0±0.30 | 32-58 | 10 |
φ70.0 | ≥70.0 | ≤35.0 | 2.0±0.30 | 38-68 | 10 |
Why Choose Us:
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
