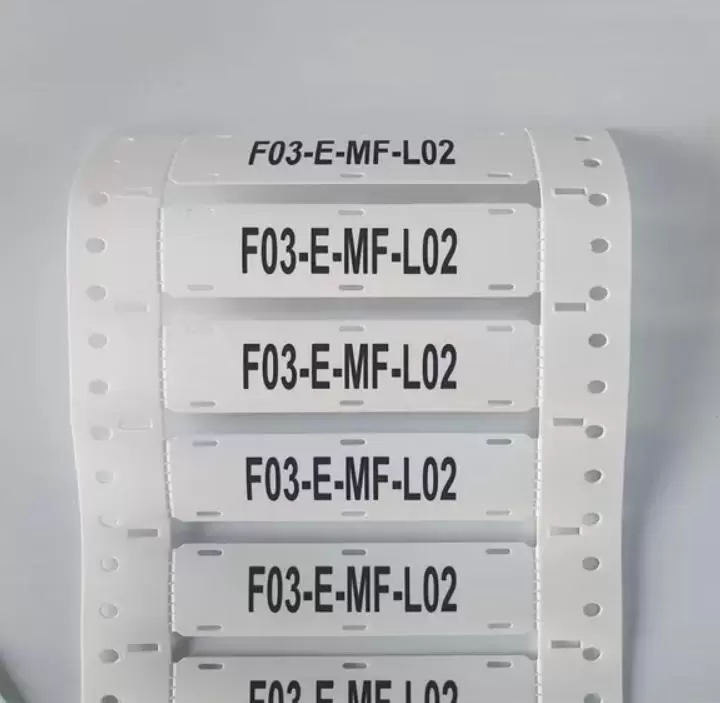

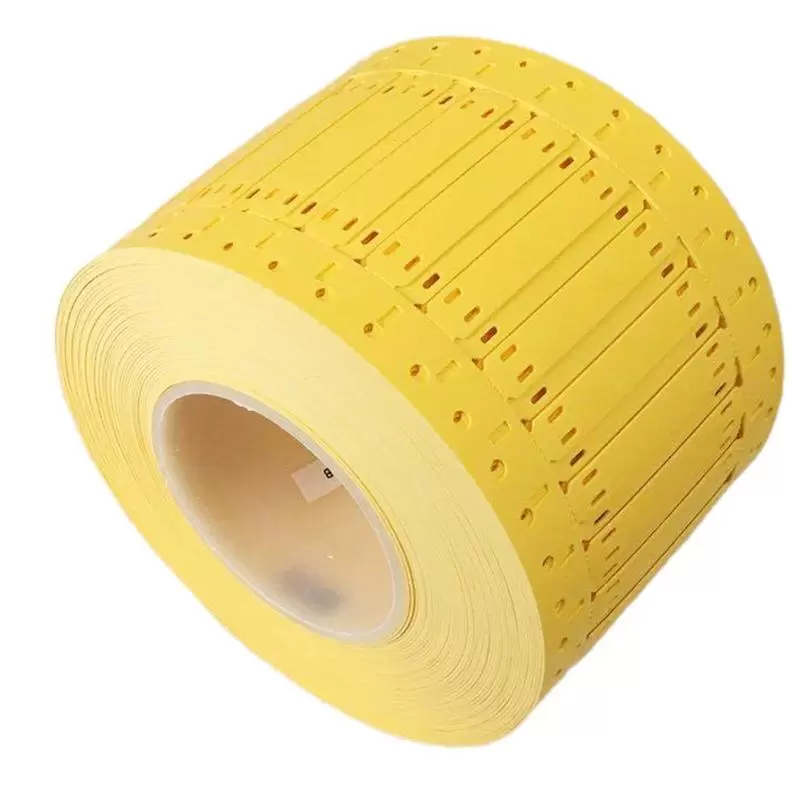

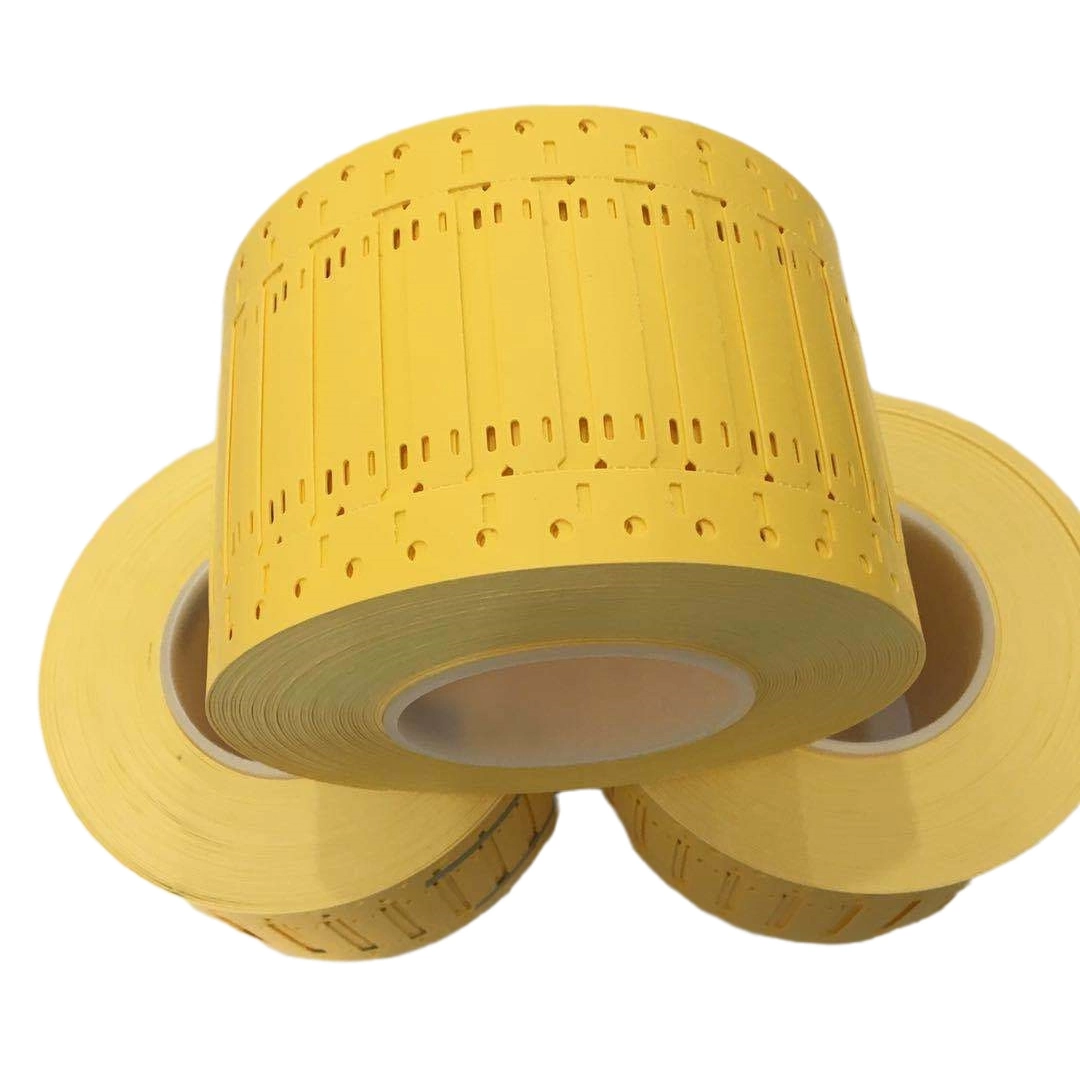

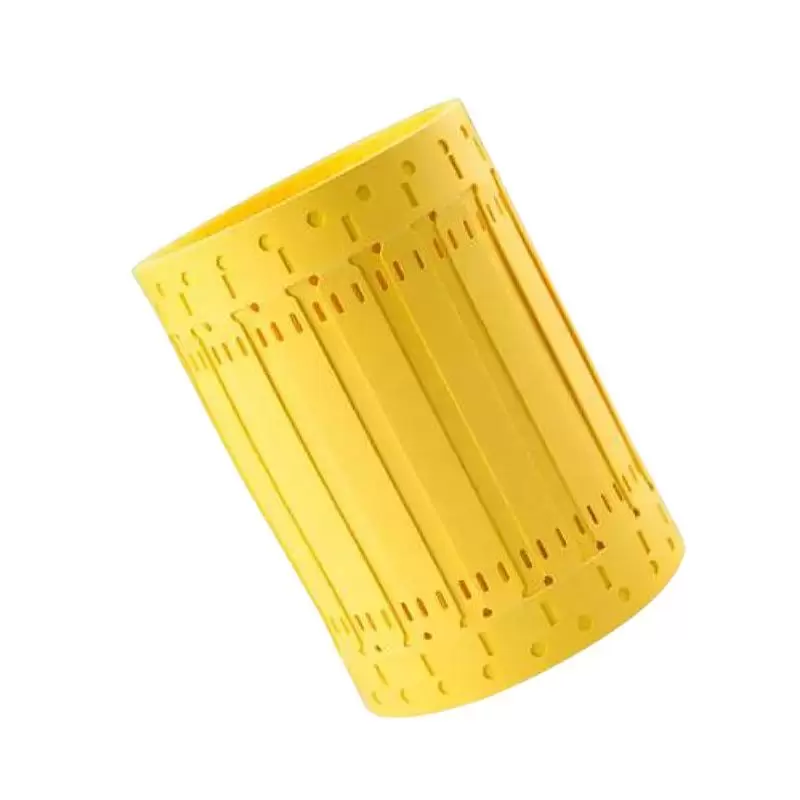

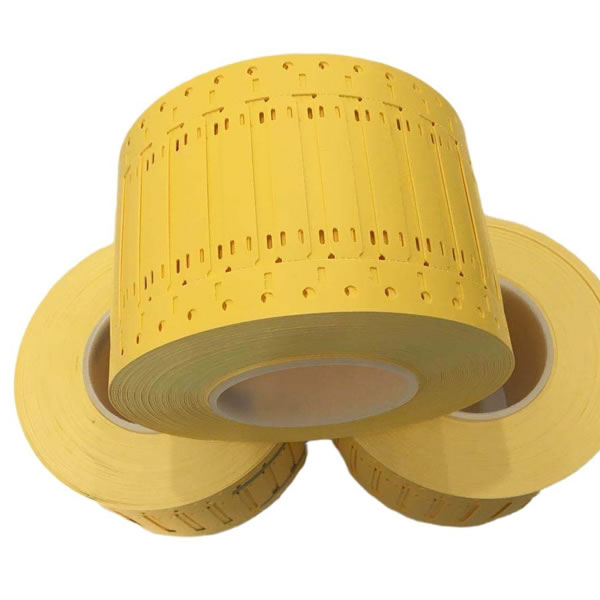

CMTID Low Smoke and Flame Retardant Cable Marker Identification Tags

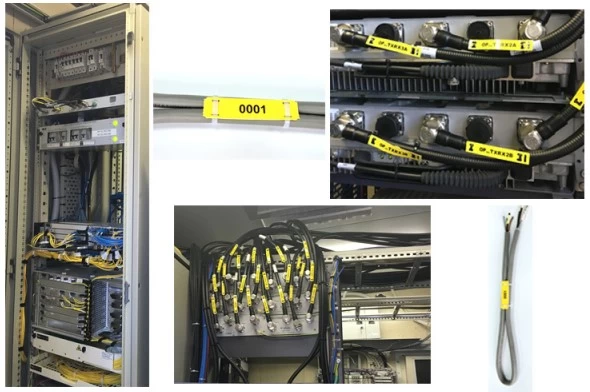

CMTID(DIN) halogen-free, low-smoke, highly flame-retardant marker tags are made using bombardment and cross-linking of the environmentally friendly polyolefin with high-energy electron beams. Marker tags are non-adhesive that can be used to identify EMU for high-speed rails, subways, motor train units, submarines, and aerospace. Market tags are attached to large cables and wire bundles with cable ties and keep permanent identification.
Structure
Technical Performance
Performance | Indicators | Test Method |
Typical properties | Unit | States |
Tensile Strength | Mpa | Unaged | ≥10.3 | ASTM G 154,MIL-DTL-23053E
ISO 37,500mm/min
175℃,168h,ISO 188 |
Heat aged/ After fluids/UV aged | ≥6.9 |
Elongation at break | % | Unaged | ≥200 |
Heat aged/ After fluid | ≥100 |
Secant Modulus | Mpa | Unaged | ＜173 | ASTM D 882 |
Voltage Withstand | V | Unaged / After aged | 2500V，60 seconds without breakdown | IEC 243,ASTM G 154
175℃,168h,ISO 188 |
Dielectric Strength | MV/m | Before aged | ≥19.7 |
Heat aged/ After fluid/ UV aged | ≥15.8 |
Volume Resistivity | Ω.cm | Unaged | ≥1014 | IEC 93 |
Dielectric constant | - | Unaged | - | ASTM 150 |
Water Absorption | - | Unaged | ≤1.0 | ASTM 570,23℃,24h |
Bare Copper Corrosion | - | Unaged | No corrosion | 23℃,Rh 95±5%,24h
175℃,16h |
Heat Shock | - | Unaged | No tracks ,No dripping | 225℃,4h |
Cold Flexibility | - | Unaged | No tracks | -30℃,1h |
Flammability | - | Unaged | DIN 5510，S3 | DIN 5510-2 |
Smoke Density | - | Unaged | ≤0.017 | DIN 5510-2 |
Toxcity Index | - | Unaged | No tracks ,No dripping | 225℃,4h |
Dimension
Order description | Width G(mm) | L Length(mm) | Printed Characters | Cable OD(mm) |
Height G | Length l |
CMTID-10.4-45/4/ | 10.4 | 45 | 10.4 | 25 | 5.08~12.7 |
CMTID-10.4-53/4/ | 10.4 | 53 | 10.4 | 33 | 5.08~12.7 |
CMTID-10.4-64/4/ | 10.4 | 64 | 10.4 | 44 | 5.08~12.7 |
CMTID-10.4-76/6/ | 10.4 | 76 | 10.4 | 56 | 5.08~12.7 |
CMTID-10.4-90/6/ | 10.4 | 90 | 10.4 | 70 | 5.08~12.7 |
CMTID-15.0-45/4/ | 15.0 | 45 | 15.0 | 25 | 12.7~19.1 |
CMTID-15.0-53/4/ | 15.0 | 53 | 15.0 | 33 | 12.7~19.1 |
CMTID-15.0-64/4/ | 15.0 | 64 | 15.0 | 44 | 12.7~19.1 |
CMTID-15.0-76/6/ | 15.0 | 76 | 15.0 | 56 | 12.7~19.1 |
CMTID-15.0-90/6/ | 15.0 | 90 | 15.0 | 70 | 12.7~19.1 |
CMTID-20.3-45/4/ | 20.3 | 45 | 20.3 | 25 | 19.1~25.4 |
CMTID-20.3-53/4/ | 20.3 | 53 | 20.3 | 33 | 19.1~25.4 |
CMTID-20.3-64/4/ | 20.3 | 64 | 20.3 | 44 | 19.1~25.4 |
CMTID-20.3-76/6/ | 20.3 | 76 | 20.3 | 56 | 19.1~25.4 |
CMTID-20.3-90/6/ | 20.3 | 90 | 20.3 | 70 | 19.1~25.4 |
CMTID-25.4-45/4/ | 25.4 | 45 | 25.4 | 25 | ≥25.4 |
CMTID-25.4-53/4/ | 25.4 | 53 | 25.4 | 33 | ≥25.4 |
CMTID-25.4-64/4/ | 25.4 | 64 | 25.4 | 44 | ≥25.4 |
CMTID-25.4-76/6/ | 25.4 | 76 | 25.4 | 56 | ≥25.4 |
CMTID-25.4-90/6/ | 25.4 | 90 | 25.4 | 70 | ≥25.4 |
