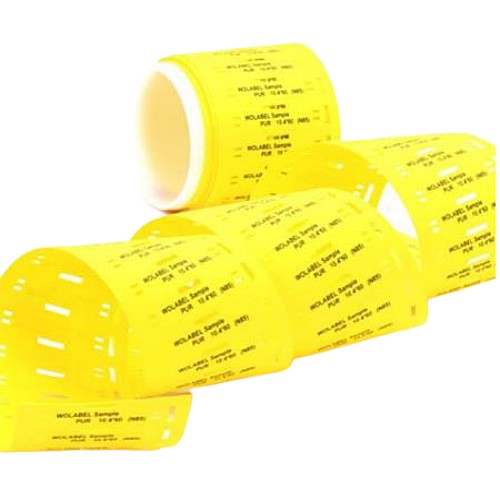

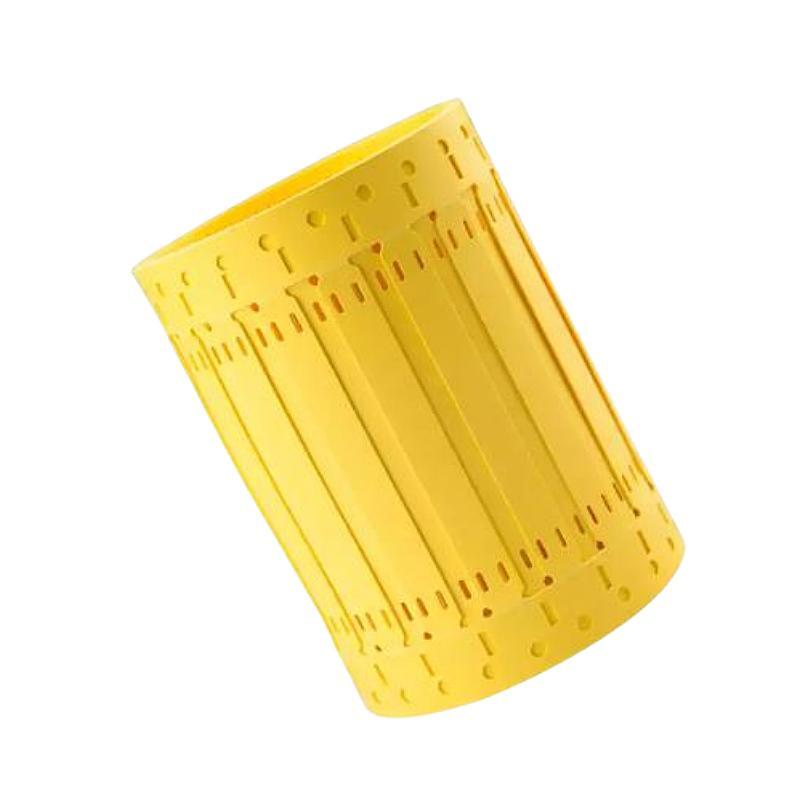

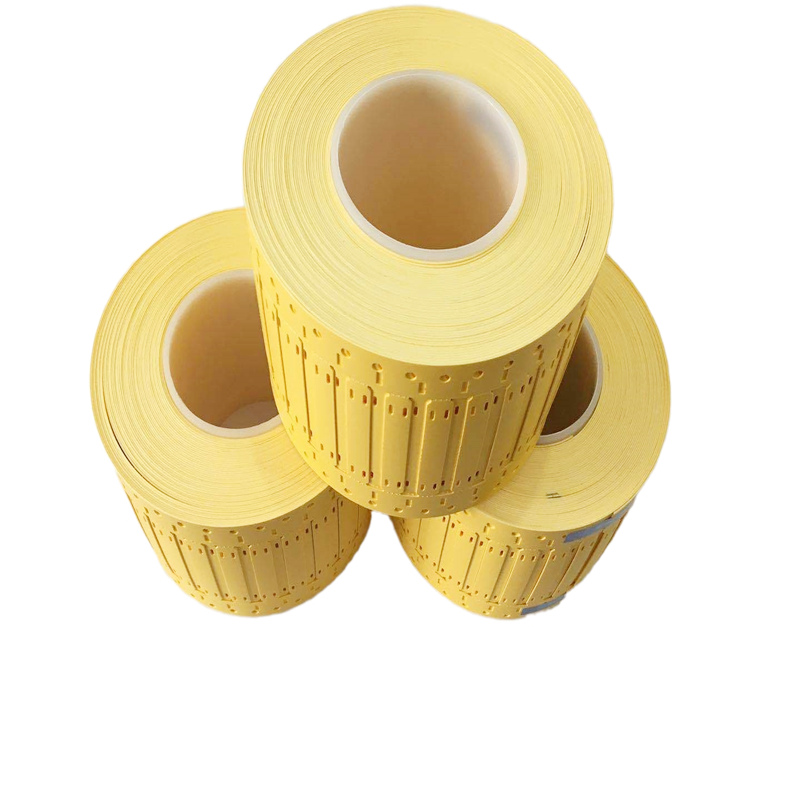

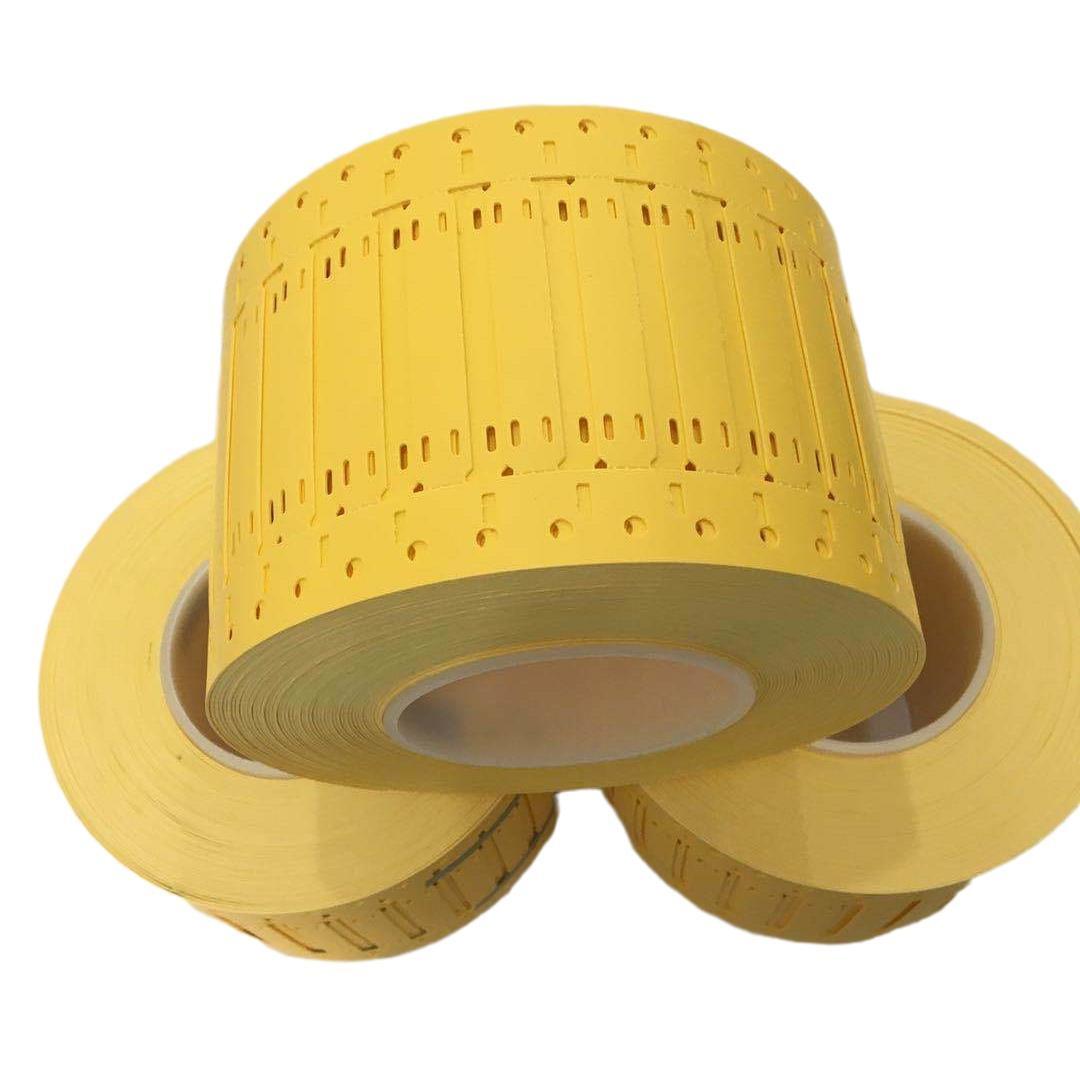

CMTIA Military Grade and High Temperature Resistant Cable Marker Identification Tags

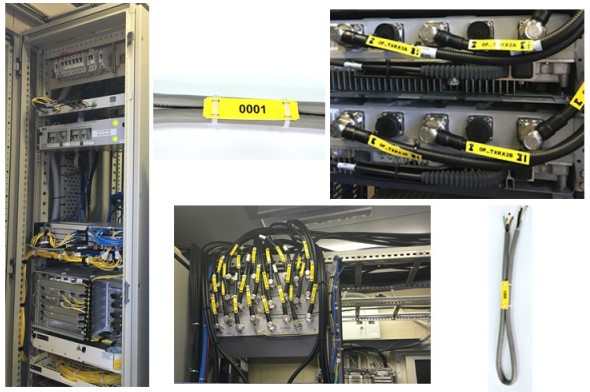

CMTIA-military grade cable marker tags are made by means of bombardment and cross-linking of the environmentally friendly polyolefin with high energy electron beams. Marker tags are non-adhesive that can be used to identify EMU for high-speed rails, subways, submarines and aerospace. Market tags are attached on large cables and wire bundles with cable ties and keep permanent identification. The printed characters are amazingly abrasion resistant, even if washing agent or military purpose fuel oil corrosion happens, the color code soundness still meets American military standard SAE-AS 81531 and MIL-STD-202F/215J and keeps permanent identification.
Structure
Technical Performance
Performance | Indicators | Test Method |
Typical properties | Unit | States |
Tensile Strength | Mpa | Unaged | ≥10.3 | ASTM G 154,MIL-DTL-23053E
ISO 37,500mm/min
175℃,168h,ISO 188 |
Heat aged/ After fluids/UV aged | ≥6.9 |
Elongation at break | % | Unaged | ≥200 |
Heat aged/ After fluid | ≥100 |
Secant Modulus | Mpa | Unaged | ＜173 | ASTM D 882 |
Voltage Withstand | V | Unaged / After aged | 2500V，60S Breakdown | IEC 243,ASTM G 154
175℃,168h,ISO 188 |
Dielectric Strength | MV/m | Before aged | ≥19.7 |
Heat aged/ After fluid/ UV aged | ≥15.8 |
Volume Resistivity | Ω.cm | Unaged | ≥1014 | IEC 93 |
Dielectric constant | - | Unaged | ≤3.1 | ASTM 150 |
Water Absorption | - | Unaged | ≤0.5 | ASTM 570,23℃,24h |
Bare Copper Corrosion | - | Unaged | No corrosion | 23℃,Rh 95±5%,24h
175℃,16h |
Heat Shock | - | Unaged |
|
|
Cold Flexibility | - | Unaged | No tracks ,no drops | 225℃,4h |
Flammability | - | Unaged | No cracks | -55℃,1h |
Smoke Density | - | Unaged | VW-1 | IEC 60332-1-3 Ed.1.0 b:2004 |
Toxcity Index | - | Unaged | - | DIN 5510-2 |
Dimension
Order description | Width G(mm) | L Length(mm) | Printed Characters | Cable OD(mm) |
Height G | Length l |
CMTIA-10.4-45/4- | 10.4 | 45 | 10.4 | 25 | 5.08～12.7 |
CMTIA-10.4-53/4- | 10.4 | 53 | 10.4 | 33 | 5.08～12.7 |
CMTIA-10.4-64/4- | 10.4 | 64 | 10.4 | 44 | 5.08～12.7 |
CMTIA-10.4-76/6- | 10.4 | 76 | 10.4 | 56 | 5.08～12.7 |
CMTIA-10.4-90/6- | 10.4 | 90 | 10.4 | 70 | 5.08～12.7 |
CMTIA-15.0-45/4- | 15.0 | 45 | 15.0 | 25 | 12.7～19.1 |
CMTIA-15.0-53/4- | 15.0 | 53 | 15.0 | 33 | 12.7～19.1 |
CMTIA-15.0-64/4- | 15.0 | 64 | 15.0 | 44 | 12.7～19.1 |
CMTIA-15.0-76/6- | 15.0 | 76 | 15.0 | 56 | 12.7～19.1 |
CMTIA-15.0-90/6- | 15.0 | 90 | 15.0 | 70 | 12.7～19.1 |
CMTIA-20.3-45/4- | 20.3 | 45 | 20.3 | 25 | 19.1～25.4 |
CMTIA-20.3-53/4- | 20.3 | 53 | 20.3 | 33 | 19.1～25.4 |
CMTIA-20.3-64/4- | 20.3 | 64 | 20.3 | 44 | 19.1～25.4 |
CMTIA-20.3-76/6- | 20.3 | 76 | 20.3 | 56 | 19.1～25.4 |
CMTIA-20.3-90/6- | 20.3 | 90 | 20.3 | 70 | 19.1～25.4 |
CMTIA-25.4-45/4- | 25.4 | 45 | 25.4 | 25 | >25.4 |
CMTIA-25.4-53/4- | 25.4 | 53 | 25.4 | 33 | >25.4 |
CMTIA-25.4-64/4- | 25.4 | 64 | 25.4 | 44 | >25.4 |
CMTIA-25.4-76/6- | 25.4 | 76 | 25.4 | 56 | >25.4 |
CMTIA-25.4-90/6- | 25.4 | 90 | 25.4 | 70 | >25.4 |
