DWRS-VBK Semi-rigid Adhesive Lined Dual Wall Heat Shrink Tubing For Automotive Wiring Harness

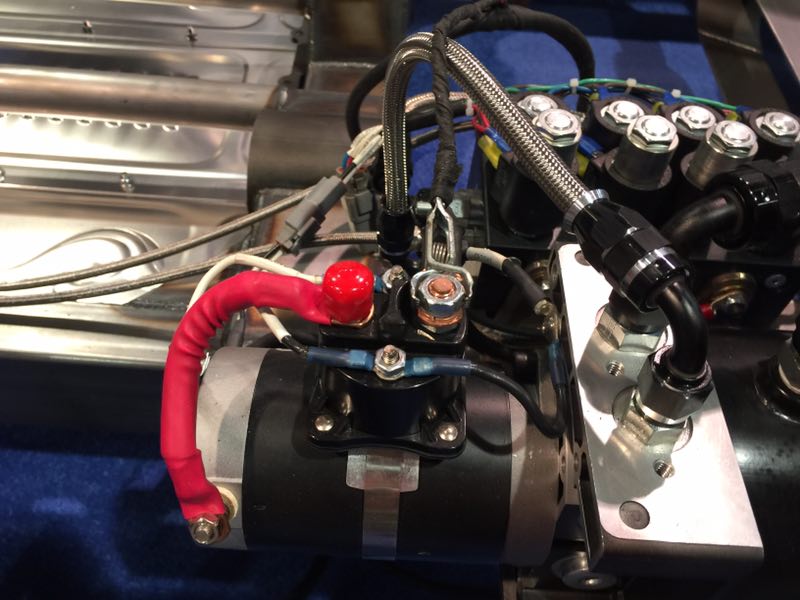

DWRS-VBK is a dual-wall, heat-shrinkable tubing designed to provide moisture-proof encapsulation of an electrical splice in an automotive environment. Moisture may enter a splice area directly or indirectly via a capillary action between individual wires, thus causing corrosion.The tubing is centered over the splice area and on heating the adhesive melts and is squeezed around where the wires are crimped or welded and between the conductors, by the shrinking action of the sleeve. The installed product provides low-profile mechanical protection against flexing, abrasion, and cut-through as well as electrical insulation. The jacket is flame-retarded.
Structure
Technical Performance
Property | Typical Data | Test Method |
Tensile strength | ≥16MPa | ASTM D 2671 |
Ultimate elongation | ≥400% | ASTM D 2671 |
Heat ageing Tensile strength | ≥13MPa | 158℃×168h |
Heat ageing Ultimate elongation | ≥300% | 158℃×168h |
Longitudinal shrinkage | -8%～+8% | ASTM D 2671 |
Flammability | Self-extinguishing in 30 sec. | AMS-DTL-23053/4 |
Flammability | ≥20kV/mm | IEC 60243 |
Volume resistance | ≥1014Ω.cm | IEC 60093 |
Dimension
Size (mm) | As supplied (mm) | After recovered(mm) | Standard package |
Inside diameter (Max.) | Total Wall thickness (Min.)w1 | Adhesive Thickness (Nom.)w2 | (M/pcs) |
Φ6.0 | ≥6.0 | ≤1.27 | ≥1.30 | 0.56 | 1.22 |
Φ8.0 | ≥8.0 | ≤1.65 | ≥1.52 | 0.76 | 1.22 |
Φ12.0 | ≥12.0 | ≤2.41 | ≥1.91 | 1.02 | 1.22 |
Φ18.0 | ≥18.0 | ≤4.45 | ≥2.41 | 1.37 | 1.22 |
